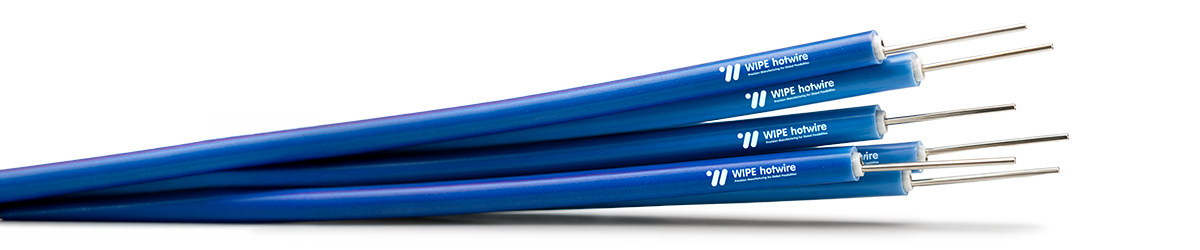

High-Temperature Wire (MIL Specification)
Heat-resistant cable engineered to MIL-W, MIL-DTL, and NEMA HP standards
Overview
WIPE hotwire's MIL specification high-temperature wire range is engineered for demanding electronic, aerospace, and military applications where standard wiring cannot withstand sustained thermal and electrical stress. As a high-temperature electrical cable built to MIL-W-16878, MIL-DTL-22759, and MIL-DTL-16878 standards, this range covers hook-up wire, motor and transformer leads, computer back panel wiring, and aircraft electrical systems. Available in PTFE, FEP, ETFE, and PVC insulation, this high-temperature cable range is rated from 105°C to 260°C, giving engineers a specification for every thermal class their application demands.
Features & Specifications
Click a tab to view the key features or the full construction and technical specifications.
- Temperature ratings from 105°C to 260°C, depending on configuration
- Voltage grades from 250V to 3000V
- Conductor sizes from 32 AWG to 6 AWG
- Insulation thickness from 6 Mil to 30 Mil
- Insulation options: PTFE, FEP, ETFE, and PVC
- Jacket options: none (bare insulated) or nylon-reinforced
- SPC, NPC, and ATC conductor types
- Vertical flame rating (UL/CSA) across the entire range
- Built to MIL-W-16878, MIL-DTL-22759, and MIL-DTL-16878 specifications, including NEMA HP-3 and HP-4 classes
| Conductor | SPC, NPC, or ATC, 32 AWG to 6 AWG |
|---|---|
| Insulation | PTFE, FEP, ETFE, or PVC, 6 Mil to 30 Mil thickness |
| Jacket | None (N/A) or nylon, depending on construction |
| Voltage | 250V to 3000V |
| Temperature rating | 105°C to 260°C |
| Flame rating | Vertical, per UL/CSA |
| Standards | MIL-W-16878 (NEMA HP-3, HP-4), MIL-DTL-22759, MIL-DTL-16878 |
Applications
- Hook-up wire for high-temperature electrical applications
- Motor and transformer wiring
- Oven, furnace, and process instrumentation wiring
- Military and aerospace equipment
- Electronic equipment, motor leads, and computer back panels
- Aircraft electrical systems requiring polyamide-jacketed, MIL-spec wire
- Applications requiring self-extinguishing, non-burning wire performance
Related Products
High-Temperature Control Cable High-Temperature Control Cables
For reliable performance in extreme heat conditions
View product
Instrumentation Cable Instrumentation Cable
As per BS EN 50288-7 / IS 694 / IS 1554
View product
Power & Control Cable Power & Control Cable
Control Cable as per BS EN 50288-7 / IS 694 / IS 1554
View product
UL 758 Appliance Wiring Material UL 1015 Wire
For compliant internal wiring across appliances, motors, and control equipment
View product
Frequently Asked Questions
What makes this wire suitable for MIL-spec high-temperature applications?
This wire is constructed with PTFE, FEP, or ETFE insulation, materials chosen for excellent dielectric properties, low weight, and strong thermal and cryogenic performance. ETFE-insulated variants are considered self-extinguishing and non-burning in both horizontal and vertical flammability tests, making them well suited to aerospace and military equipment.
What is the maximum temperature rating available?
Depending on configuration, this range is rated from 105°C up to 260°C, with FEP and PTFE variants covering the higher end of that range.
What is the difference between the jacket types offered?
Some constructions are supplied without an outer jacket (insulation only), while others include a Nylon jacket for added mechanical protection, commonly specified for aircraft electrical systems.
What voltage ratings are available?
Voltage grades range from 250V to 3000V across the wire range, allowing selection based on the specific circuit and application requirement.
Specify High-Temperature Wire (MIL Specification) for your next programme.
Send quantities, target standard and market — a quotation and compliance documentation follow within one business day. Call +91-9810391834 or write to sales@wipehotwire.com.
