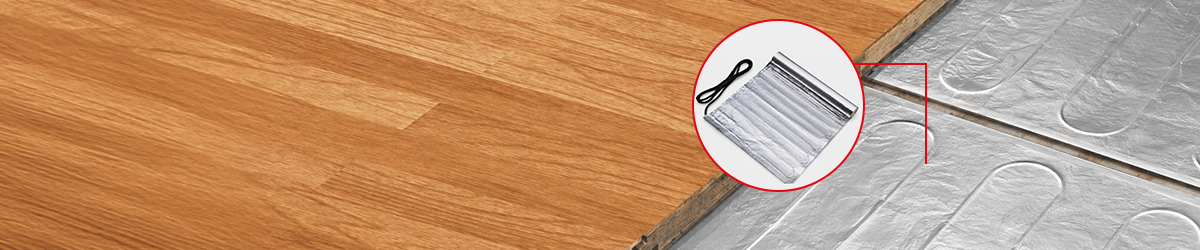

Aluminium Foil Heating Mat

Aluminium Foil Heating Mat

For thin-profile installations under wooden and laminate flooring

Request a Quote Download Datasheet

Overview

WIPE hotwire Aluminium Foil Heating Mat is engineered for thin-profile installations beneath wooden and laminate flooring, combining a low-profile ETFE insulated heating conductor with a self-adhesive aluminium foil carrier for easy, space-efficient installation.

Region

Features & Specifications

Click a tab to view the key features or the full construction and technical specifications.

  • Twin solid ETFE insulated heating conductor, 0.90 to 1.1mm diameter
  • 0.10mm aluminium wire braiding with flat shielded cable, 2.4 x 1.4mm
  • Self-adhesive aluminium foil with laminated glass fibre cloth
  • 140W/Sq.m heat density, 10.75W/m linear wattage at 230V
  • 5m PVC insulated and jacketed cold tail, 0.75 Sq.mm X3C

Applications

  • Thin-profile installations under wooden and laminate flooring
  • Renovation projects requiring minimal floor build-up height

Related Products

Underfloor Heating Cable & Mat Electric Underfloor Heating Underfloor Heating Cable & Mat Cables and ready-to-lay mats for warm, even indoor floors. View In-Slab Underfloor Heating Cable Electric Underfloor Heating In-Slab Underfloor Heating Cable Heavy-duty heating cable for in-concrete slab installations. View Earth-Soil Heating System Electric Underfloor Heating Earth-Soil Heating System Soil-warming heating systems for greenhouses and ground-level applications. View

Frequently Asked Questions

What is an aluminum foil heating mat?

An aluminum foil heating mat is a thin-profile electric underfloor heating solution designed for installation beneath wood and laminate flooring. It provides consistent, energy-efficient floor heating while fitting into low-profile floor assemblies.

Can an aluminum foil heating mat be used under wood and laminate floors?

Yes. WIPE hotwire's aluminum foil heating mat is specifically designed for underfloor heating beneath wood and laminate flooring, making it suitable for residential and commercial applications.

What is the heat output of the aluminum foil heating mat?

The aluminum foil heating mat provides a 140 W/sq.m heat density with a linear output of 10.75 W/m at 230V.

What are the key features of WIPE hotwire aluminum foil heating mats?

WIPE hotwire aluminum foil heating mats feature twin solid ETFE-insulated heating conductors, aluminum wire braiding, self-adhesive aluminum foil with laminated glass fiber cloth, and a 0.5 m wide mat with 75 mm wire spacing.

How is the aluminum foil heating mat installed?

The self-adhesive aluminum foil heating mat is designed for easy placement beneath suitable wood and laminate flooring. Its thin profile makes it suitable for applications where floor build-up needs to be minimized.

Have a Specific Requirement?

Our experts can help you find the right heating solution for your application.

Talk to Our Team Request a Sample

WIPE hotwire's Aluminium Foil Heating Mat is purpose-built for thin-profile electric floor heating beneath wooden and laminate flooring, where minimal build-up height is essential. Constructed with a twin solid ETFE insulated heating conductor measuring just 0.90 to 1.1mm in diameter, and wrapped in a self-adhesive aluminium foil carrier laminated with glass fiber cloth, this heating mat installs quickly without adding bulk to your flooring system.

Delivering a heat density of 140W/sq.m and a linear wattage of 10.75W/m at 230V, the Aluminium Foil Heating Mat provides consistent, energy-efficient warmth suited for both new installations and renovation projects. Its low-profile 0.5m width and 1.5 to 1.7mm thickness make it an ideal underfloor heating solution wherever floor height is a constraint, without compromising on heating performance or durability.

Whether you're upgrading a wooden floor or installing electric heating beneath laminate flooring, WIPE hotwire's Aluminium Foil Heating Mat offers a reliable, space-saving alternative to thicker underfloor heating cables. Download our technical datasheet for full wattage and installation specifications, or connect with our team to discuss your project requirements.
